一、概述Introduction

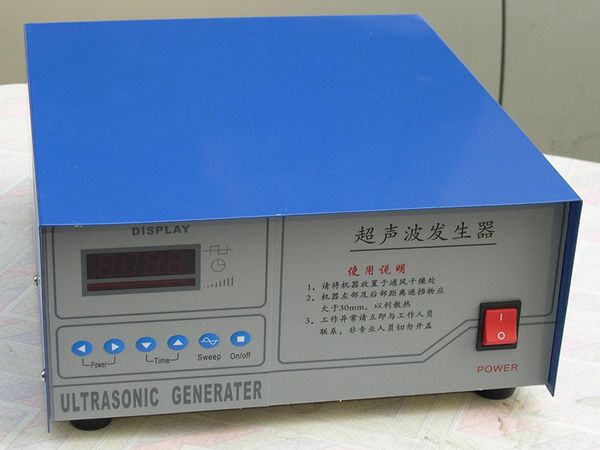

CSB系列超聲波振動篩為220V，50hz或110v，60hz轉為18KHZ高頻電能，輸入超聲換能器，將其轉化為18KHZ機械振動，達到篩選的目的。 網絡，使超微粉篩選變得容易。 該系統在傳統振動篩的基礎上，在篩網上引入了低振幅，高頻超聲振動波（機械波），提高了超細粉末的篩分性能。 特別適用于高附加值細粉的用戶。
The CSB series ultrasonic vibrating screen is 220 v, 50 hz or 110 v, 60 hz into 18 KHZ high frequency electric energy of power, input ultrasonic transducer, turning it into 18 KHZ mechanical vibration, so as to achieve the aim of efficient screening and network, makes the ultra micro powder screening for easy. This system introduces a low amplitude and high frequency ultrasonic vibration wave (mechanical wave) on the sieve net based on traditional vibrating screen to improve the screening performance of ultrafine powder. It is especially suitable for users with high added value fine powder.
二、應用范圍Applied field
廣泛用于碳化硅，剛玉，白剛玉，鉬粉，鎢粉，鈷粉，鎳粉，不銹鋼粉，合金粉，粉末涂料，石英粉，金剛石粉，磁粉，激光粉，鋁粉，電解銅 粉末，拋光粉，耐火材料，發光粉，玻璃珠，橡膠添加劑，糖粉，淀粉，鹽，大豆，API中間體，普通篩分機等各種材料的篩選不良。
Widely used for silicon carbide, corundum, white corundum, molybdenum powder, tungsten powder, cobalt powder, nickel powder, stainless steel powder, alloy powder, powder coating, quartz powder, diamond powder, magnetic powder, laser powder, aluminum powder, electrolytic copper powder, polishing powder, refractory materials, luminous powder, glass beads, rubber additives, sugar powder, starch, salt, soy, API intermediates, such as ordinary sieve machine is bad screening of various materials.
三、技術參數Technical parameters
模型Model | CSB-600 | CSB-800 | CSB-1000 | CSB-1200 | CSB-1500 |
篩分直徑Sieving Diameter（mm） | Φ540 | Φ730 | Φ900 | Φ1100 | Φ1400 |
屏幕面積Screen area（m2） | 0.2289 | 0.4183 | 0.6359 | 0.9499 | 1.538 |
篩網Sieving mesh | 100-500 | ||||
圖層Layers | 1 | 1 | 1 | 1 | 1 |
功率Power（KW） | 0.55 | 0.75 | 1.1 | 1.5 | 1.8 |
Note: it can be redesigned according to the special requirement of users. | |||||
