一 管鏈輸送機概述 Introduction

  管式輸送機又稱管式鏈板輸送機，工作時，裝有圓盤刮板的鏈條在封閉的管路中運動，依靠刮板推動物料沿管路向前輸送，是一種節能、連續輸送設備。

Pipe conveyor is also called the tube chain conveyor, work, equipped with disc scraper chain movement in the closed pipeline, rely on the scraper push forward along the pipeline conveying materials, and is a highly efficient, energy saving, continuous conveying equipment.

二、管鏈輸送機工作原理working principle

管鏈輸送機是輸送粉狀、小顆粒狀及小塊狀等散狀物料的連續輸送設備，可以水平、傾斜和垂直組合輸送。在密閉管道內，以鏈片為傳動構件帶動物料沿管道運動。當水平輸送時，物料顆粒受到鏈片在運動方向的推力。當料層間的內摩擦力大于物料與管壁的外摩擦力時，物料就隨鏈片向前運動，形成穩定的料 流；當垂直輸送時，管內物料顆粒受鏈片向上推力，因為下部給料阻止上部物料下滑，產生了橫向側壓力，所以增強了物料的內摩擦力，當物料間的內摩擦力大于物料與管內壁外摩擦力及物料自重時，物料就隨鏈片向上輸送，形成連續料流。

tube chain conveyor is a continuous conveying equipment conveying powder, small granular and small bulk materials, which can be transported horizontally, slanted and vertically. In the closed pipe, the chain plate is used to drive the material along the pipe. When horizontal transport, the material particles are driven by the chain in the direction of motion. When the internal friction force between the material layer is greater than the external friction of the material and the pipe wall, the material will move forward with the chain plate to form a stable material flow. When vertical conveying pipe material particles by chain upward thrust, because of the lower to the upper material to prevent slipping, the transverse lateral pressure, so to enhance the material internal friction, when the friction between the material is greater than the material and pipe wall friction and material weight, the material is with chain upward transportation, form continuous material flow.

三、翼虎管鏈輸送機優勢advantage：

1. 結構緊湊，占用空間小，可以三維改變輸送方向，不受地形、角度與高度的影響；輸送過程在密閉的管路中進行，物料無污染，無粉塵飛揚；

2. 輸送過程平滑，物料間基本無內部內部運動，破損少，保證物料品質，適合磨蝕性物料；

3. 不會產生系統堵塞，適合輸送多種形態的物料；

4. 對混合物料的輸送，不會產生物料分層現象

5. 輸送能力大，能耗低，大降低設備運行成本

6. 所有運動部件全部在密閉的空間內運行，安全、**

7. 可實現遠距離輸送

8. 可隨意部署多個進出料口，滿足工藝要求

9. 易于實現集中控制，提高自動化程度

1. Compact structure, small footprint, can change the direction of transportation in three dimensions, without the influence of topography, Angle and height; The conveying process is carried out in the closed pipeline, the material is free from pollution and the dust is free.

2. Smooth transportation process. There is little internal internal movement between materials, so that there is little damage, and the material quality is guaranteed to be suitable for abrasive materials.

3. There will be no system clogging, suitable for conveying various types of materials;

4. The transport of mixed materials will not produce material stratification.

5. Large transportation capacity, low energy consumption, large reduction of equipment operation cost.

6. All moving parts are operated in confined Spaces, safe and reliable.

7. Remote delivery can be achieved.

8. Multiple inlet and outlet can be deployed at will to meet the process requirements.

9. Easy to realize centralized control and improve the degree of automation.

四、 管鏈輸送系統的應用領域Application：

1. 塑料工業：PVC、PP PE粉料，ABS PC PP PE 顆粒

2. 精細化工：染料 顏料 涂料 碳黑 鈦色素 氧化鐵 陶粉 重質碳酸鈣 細顆粒碳酸鈣 皂土 分子篩 瓷土 硅粉 活性炭

3. 礦業：尿素 氯化銨 碳酸氫銨 蘇打粉 固態殺蟲劑 鎢粉 魚油 銅礦粉 煤粉 塊狀磷酸鹽 礬土等

4. 建筑材料：水泥 粘土 黃沙 石英沙 粘土粉 硅 石灰粉 白云石粉 木屑 玻璃絲 二氧化硅 畫粉等

5. 食品工業：面粉 淀粉 谷類，奶粉 食物添加劑等

1. Plastics industry: PVC, PP PE powder, ABS PC PP PE particle.

2. Fine chemical industry: dye pigment coating, carbon black titanium pigment, iron oxide ceramic powder, heavy calcium carbonate, fine particle, calcium carbonate, calcium carbonate, silica, silica, activated carbon.

3. Mining: urea ammonium bicarbonate ammonium bicarbonate sodium bicarbonate, solid pesticide, tungsten powder, fish oil, copper powder, coal powder, lump phosphate, bauxite, etc.

4. Building materials: cement clay, yellow sand, sand, quartz, clay powder, silica powder, white dolomite, silk-glass, silica, silica, etc.

5. Food industry: flour starch grains, milk powder food additives, etc.

五、 管鏈輸送機材質material：

管道、機殼、鏈條、鏈輪：采用SS-304不銹鋼

鏈板：尼龍

其它部件采用碳鋼，如需其他材質請說明

Piping, chassis, chain, sprocket: ss-304 stainless steel.

Link plate: nylon

Other parts are made of carbon steel. Please specify other materials.

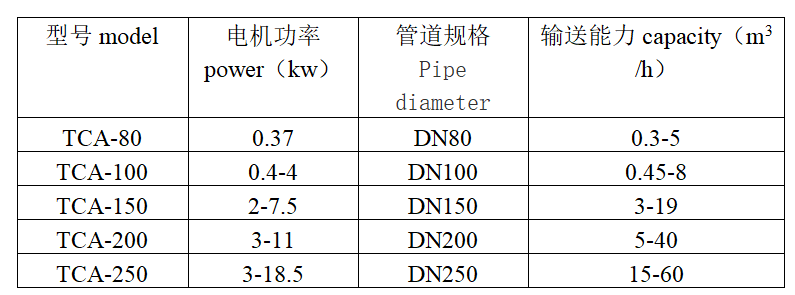

六 管鏈輸送機參數parameter

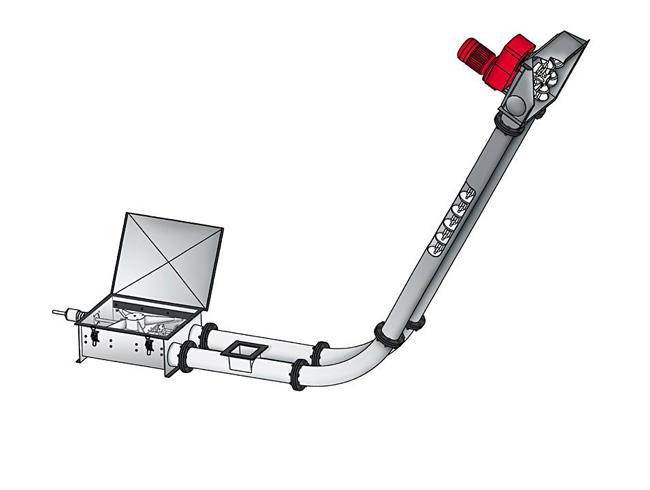

 七、布置形式
