一、用途：

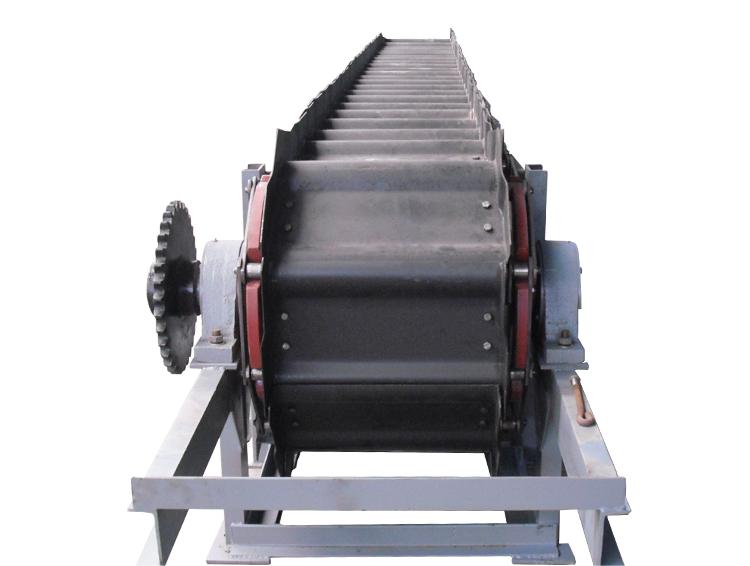

鏈式輸送機是一種用于水平或傾斜（≤15°）送粉狀、粒狀的物料產品，本產品廣泛用于建材、建筑、化工、火電、糧食加工、礦山、機械、冶煉、交通、港口和運輸等行業。

The chain conveyor is a kind of powdery or granular material for horizontal or inclined (≤15°). This product is widely used in building materials, construction, chemical, thermal power, grain processing, mining, machinery, smelting, transportation, Port and transportation industries.

二、工作原理：

散料各微粒間存在著相互的內摩擦力和內壓力，它們在鏈運機機槽內受到輸送鏈運動帶來的與運動同向的拉力作用，使散料間的內摩擦力、內壓力增大，當內摩擦力大于物料與機槽壁的摩擦力后，物料在輸送鏈的帶動下，向前移動，當料層高與機槽寬的比值滿足一定條件時，物流是穩定的，料速約等于鏈速。

There are internal frictional forces and internal pressures between the particles of the bulk material. They are subjected to the pulling force in the same direction as the movement caused by the movement of the conveyor chain in the slot of the chain conveyor, so that the internal friction and internal pressure between the bulk materials Increase, when the internal friction is greater than the friction between the material and the groove wall, the material moves forward under the conveyance chain. When the ratio of the height of the layer to the width of the groove meets certain conditions, the flow is stable. The material rate is approximately equal to the chain speed.

三、主要特點：

1．輸送能力大，輸送機允許在較小空間內輸送大量物料。

2．輸送能耗低，借助物料的內摩擦力，變推動物料為拉動，使其與螺旋輸送機相比節電50%。

3．密封和安全，全密封的機殼使粉塵無縫可鉆，操作安全、運行**。

4．使用壽命長，用合金鋼材經熱處理手段加工而成的輸送鏈，其正常壽命大于5年，鏈的滾子壽命（根據不同物料）≥2-3年。

5．工藝布置靈活，可高架、地面或地坑布置，可水平或爬坡

≤15°安裝，可多點進出料。

6．使用費用低，節電且耐用，維修少，費用低，能確保主機的正常運轉，以增加產出、降低消耗、提效。

1. The high conveying capacity and efficient conveyor allow a large amount of material to be transported in a small space.

2. The energy consumption of the conveyor is low, and the material is pulled by the internal friction of the material, so that it can save 50% compared with the screw conveyor.

3. Sealed and safe, the fully sealed housing allows dust to be drilled seamlessly for safe operation and reliable operation.

4. The service life of the conveyor chain made of alloy steel by heat treatment has a normal life of more than 5 years, and the roller life of the chain (according to different materials) ≥ 2-3 years.

5. Flexible process layout, can be arranged on the elevated, ground or pit, horizontal or climbing ≤15° installation, multi-point feeding and discharging.

 6. The utility model has the advantages of low use cost, power saving and durability, low maintenance and low cost, and can ensure the normal operation of the host to increase output, reduce consumption and improve efficiency.

四、注意事項：

1．物料溫度在60-120℃時，易選用較慢鏈速。物料超過120℃時，請于本公司技術科聯系。

2．若輸送長度大于90m或輸送一些特殊物料、或用在特殊的場合，用戶無法自行選用時，請于本公司技術科聯系。

五、維修：

1．檢查各部級檢的緊固情況，若有松動應及時擰緊。

2．檢查各運轉部位的潤滑情況，應按設備潤滑“五定“標準，進行加注潤滑油（脂）。

3．檢查內外鏈權與該輪的聯接情況，如有磨損或位置變動，應及時處理。

4．檢查各鏈板的連接螺栓的緊固情況，若有松動應及時擰緊。

5．檢查減速機的潤滑情況，潤滑油應符合油標尺刻度要求。

6．工作后對設備進行檢查、清理和擦拭，并清理工作場地。

六、定期保養

  1．鏈板機在運轉半個月時，應對各內外鏈板、鎖片、該輪進行檢查，磨損嚴重時應更換。

2．鏈板輸送機在運轉一個月時，應對機頭、機尾軸承進行檢查，并加注潤滑脂及更換密封件。

3．鏈板輸送機在運轉一個月時，應對減速機進行檢查并補充潤滑油及更換密封件。

4. 鏈板輸送機在運轉一個月時，應對傳動部位的零部件進行檢查并更換。

5．一周一小查，3個月一大變，必須保證主從動支架出渡槽的中心線在一條直線上。

6．經常保持減速機干凈、整潔。
